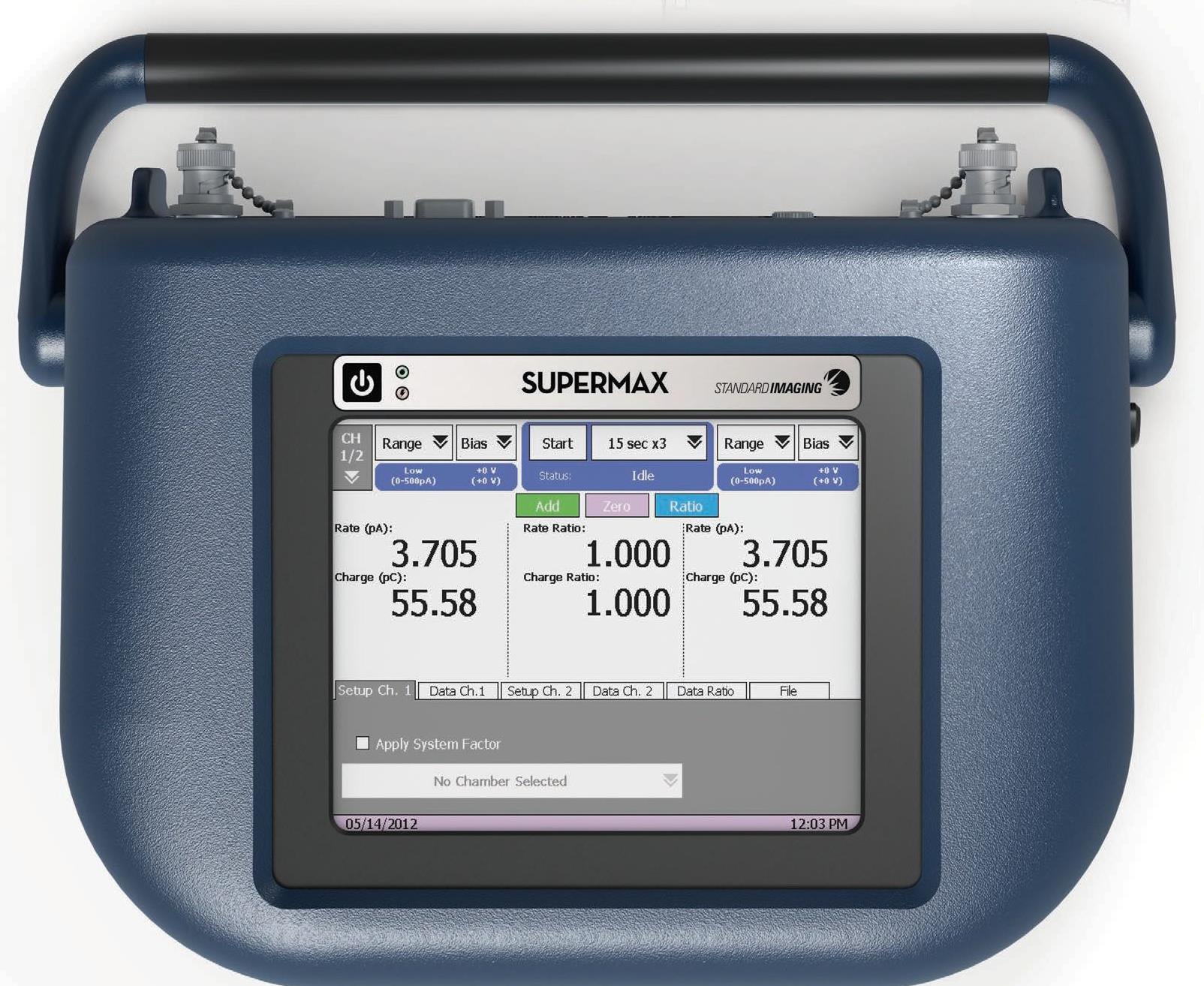

This is a reliable reference level dosimeter with two measurement channels with independent ranges, bias voltage and application factor control, as well as an ultra wide range. It is an ideal choice for external IMRT, close range radiotherapy, and SRS dose measurement in stereotactic radiosurgery.
Technical parameters:
Display range
RATE: LowRange 0.001 pA – 500.0 pA, 1 fA resolution
High Range 0.001 nA – 500.0 nA, 1 pA resolution
CHARGE: LowRange 0.001 pC – 999.9 μ C. 1 fCresolution
High Range 0.001 nC – 999.9 μ C. 1 pC resolution
resolving power
High Range: 0.001nA
Low Range: 0.001Pa
Measurement range (current)
High Range: 0.400 nA-500.0nA
Low Range: 0.400pA-500.0pA
Measurement range (charge)
High Range: 0.400nC-999999nC
Low Range: 0.400pC-999999nC
Repetitive stability: ± 0.1% IEC60731 requirement: ± 0.5%
Long term stability: ± 0.5% over one year
Stability time: ± 0.5%
Non linearity: ± 0.2% IEC60731 requirement: ± 1.0%
