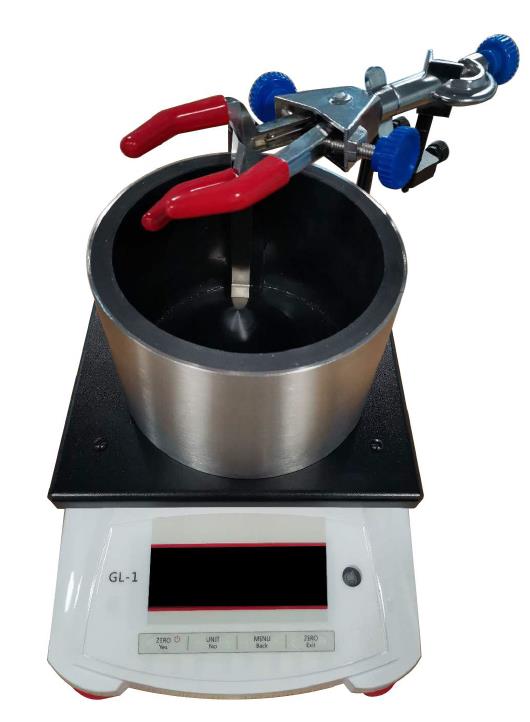

GL-1 ultrasound power meter is a precision instrument used for measuring the power output of diagnostic and therapeutic ultrasound probes. This equipment meets the requirements of "JJG639-1998 Medical Ultrasound Diagnosis Instrument Ultrasonic Source" and "JJG665-2004 Milliwatt Ultrasonic Power Meter", as well as the requirements of GB/T 7966-2009, YY/T 1084-2015, YY/T 1090-2018, GB/T 36419-2018, YY 0830-2011, YY/T 0750-2018, and JJG 639-1998. This device can meet the inspection needs of medical metrology institutions, medical device inspection institutions, and ultrasound equipment manufacturers.
technical specifications
Power range 0-30W
Resolution ± 1 mW
Minimum measurable power 1mW
Display sensitivity 0.001W
Accuracy: ± 3% ± one reading
Zeroing method: automatic
Maximum probe size: 8cm diameter
Probe operating frequency: 0.5-10MHz
Reflection target material: polymer composite material
Test medium: degassed water
Power supply 12Vac, 1 A
Portable case
