Used for testing X-ray machines, fluoroscopy X-ray machines, breast X-ray machines, CT machines, dental machines, etc.
Test multiple parameters in one exposure: dose, dose rate, kV, time, half value layer, total filtration, etc.
Real time synchronous display of measurement waveforms: dose rate, kV, mA
Supports wireless WiFi data output, and supports outputting measurement data and waveforms to Excel

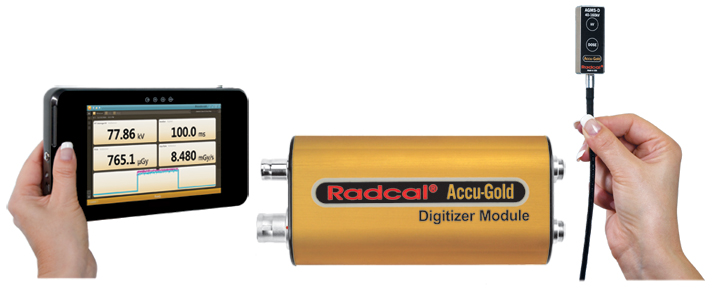

1. AGDM+multifunctional host (including testing software)
Compact multifunctional digitizer module that supports multiple sensor measurements using ACCU-GOLD+specialized software;
Supports gold standard air ionization chambers, diode solid-state sensors, mAs sensors, and brightness/illumination sensors.
It can be connected to an air ionization chamber and subjected to leakage or background radiation testing.
Supports built-in wireless wifi for wireless transmission.
2. AGMS-DM+multifunctional ionization chamber
Used for the detection of X-ray film machines, fluoroscopy machines, and dental machines, with a multi in one functional module, multiple parameters can be measured in one exposure: dose, dose rate, kilovolt, time, half value layer, total filtering, etc.
Technical parameters:
Dose: 150 nGy to 100 Gy, ± 5%
(17 µ R~11 kR, ± 5%)
Dose Rate: 150 nGy/s~350 mGy/s, ± 5% (1.0 mR/min~2.4 kR/min, ± 5%)
Half value layer (HLV): 1.3-10 ± 10% (mm AL) or ± 0.05 (mm AL)
KV (kVp): 40~160kV ± 2% or ± 0.7kV
Time: 1 ms~300 s ± 0.1% ± 0.2 ms
Total filtration: 2-22mm
