Product Introduction:
The slit focus measuring instrument, also known as a slit camera, is used for focus accuracy detection with a slit camera and bracket. Its purpose is to evaluate and test the size of the focus according to IEC standards. The main advantage of slit cameras is that they can repeatedly and accurately evaluate any focal size as much as possible. The slit camera is equipped with a small attenuator on the outside, which can be used in conjunction with the dental machine probe, simply ensuring that the probe receives sufficient radiation to trigger the attenuator. The adjustable camera bracket can make the focus measurement program easier to execute and obtain more accurate results, and can also be used for HVL detection.
The product meets the following standards:
JJG 744-2004 Verification Regulations for Medical Diagnostic X-ray Radiation Sources
JJG1078-2012 Verification Regulations for X-ray Radiation Sources in Medical Digital Photography (CR, DR) Systems
IEC 60336:2005, IEC 61223-3-1,2,4, CE certification
Technical parameters:

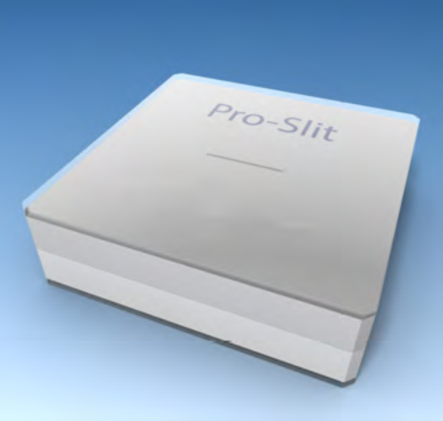

Camera size: 40 X 40 X 11.5mm
Slit width 0.01mm, length 10mm, 8 ° magnification
The aperture is made of tungsten material, embedded in PMMA, with additional stainless steel shielding

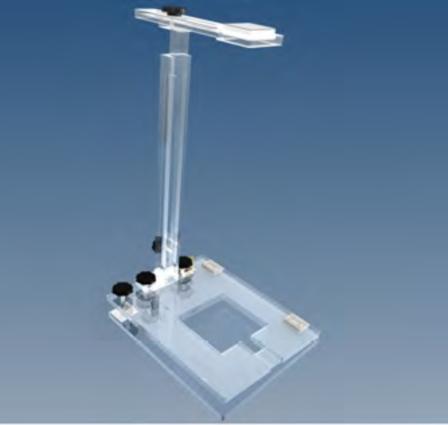

Adjustable height of camera bracket: 350-600mm (large range magnification)
The camera bracket base is equipped with a dental machine probe slot for accurate positioning of the probe
Optional accessories: Adjustable horizontal position and top vertical viewing angle accessories for testing breast system alignment and calibration accessories, for testing breast system HVL bracket accessories, for placing HVL test aluminum sheets, for HVL detection
