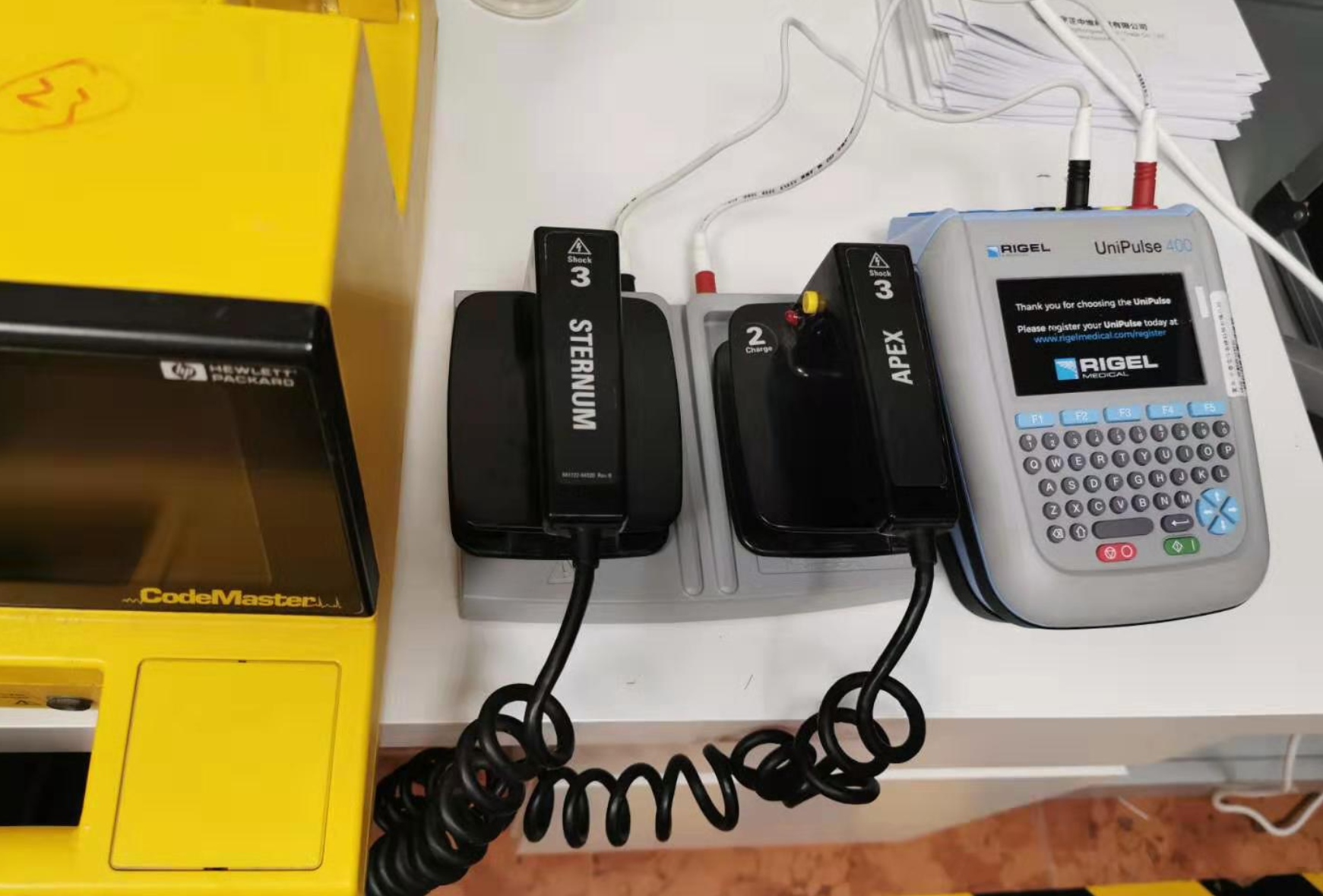

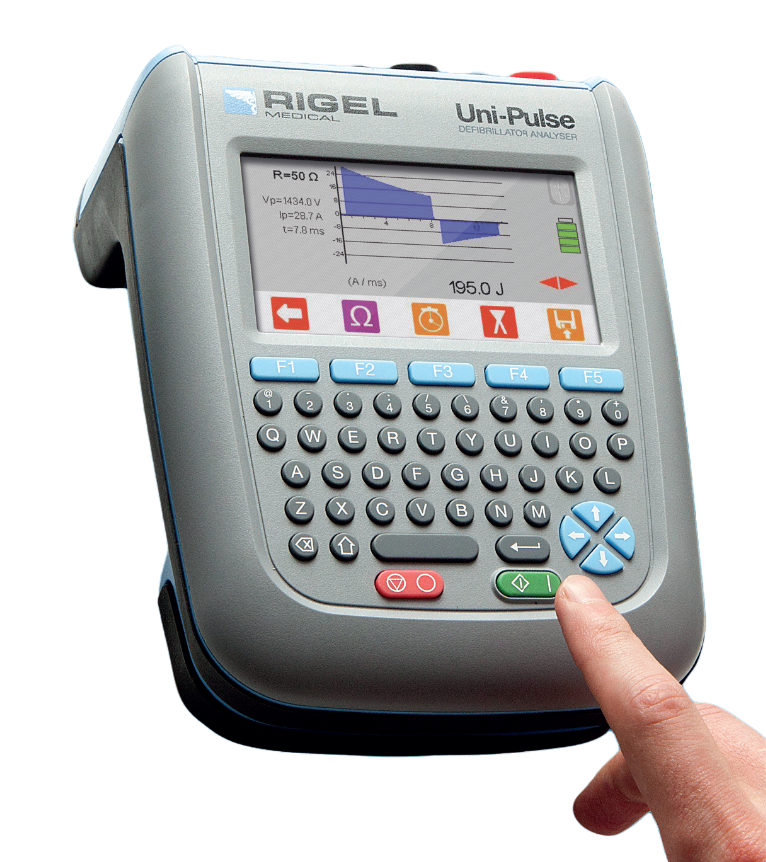

1. Purpose: This device can be used as a performance testing tool for defibrillation monitors and percutaneous pacemakers, providing accurate and reliable performance testing for defibrillators, defibrillation monitors, and percutaneous pacemakers: defibrillation energy, charging time, synchronous defibrillation testing, AED performance testing, electrocardiogram waveform simulation (normal sinus heart rate, arrhythmia, performance waveform testing, etc.) Performance testing of percutaneous pacemakers (current, pulse rate, pulse width, on-demand and asynchronous modes, sensitivity testing, refractory period testing, etc.).
2. Main technical parameters
Energy output measurement defibrillator waveform compatible with single-phase, two-phase, and pulse waveforms
Defibrillation energy, automatic range measurement: 0-600J; Accuracy: within the range of 0-199.9J, ± 1% of reading ± 0.1J; Within the range of 200-600J, ± 1% of the reading ± 1J
3. Load resistance: 50 Ω, accuracy: ± 1%, no inductance
4. Pulse width: 5 μ S-120ms
5. Voltage measurement: 0-5000V; Current measurement: 0-100A
6. High level output of all 12 cardiac leads, normal sinus heart rate 20-300BPM, amplitude 0.50-5.00mV, amplitude accuracy ± 2%
7. Can simulate over 40 arrhythmia waveforms, including 6 types of atrial arrhythmias, 8 types of ventricular arrhythmias, and 4 types of atrial conductive arrhythmias
8. Integrating algorithms from 10 common pacemaker manufacturers worldwide, CU Medical, GE, HP, Laerdal, Mindray, Philips, PhysioControl, Schiller, WelchAllyn, Zoll, and more targeted algorithms make pacemaker detection more accurate
9. Pacemaker input: fixed load 50 Ω, accuracy 1%, no inductance; Variable load 50-1600 Ω, step 50 Ω, accuracy 1%, no inductance
10. Performance and accuracy of pacemaker testing: current: 5.00-200mA, ± 1%+0.02mA; Pulse rate: 5-800PPM, ± 0.5% reading ± 0.1PPM; Pulse width: 1-100ms, ± 0.5% reading ± 0.01ms
11. Pacemaker testing items: asynchronous mode, on-demand mode, sensitivity test, and refractory period test
12. R-wave detection 20-300BPM, pulse amplitude 0.5-5.00mV
