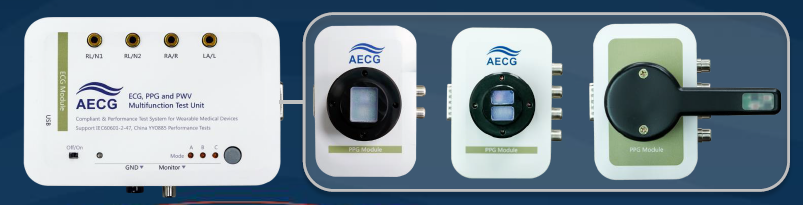

ECG, PPG, and PTWW multifunctional testing system
AECG100 applicable tested equipment:
Medical devices with ECG/PPG heart rate/SPO2 function
Wearable device with PPG heart rate measurement function
Wearable device with SpO2 blood oxygen saturation measurement function
Wearable device with PWTT measurement function
(Or devices with NIBP blood pressure measurement, vascular elasticity monitoring, and arteriosclerosis monitoring functions)
Technical parameters:
1. Wearable product multi kinetic energy tester
1.1 Wearable product multifunctional tester, model: AECG100
2. Equipped with easy to operate control software
2.1 The electrocardiogram performance test complies with IEC60601-2-47 and YY0885 (single lead), providing PPG heart rate simulation signal and SpO2 blood oxygen saturation simulation signal
2.2 Output voltage accuracy: ± 1%, amplitude: 0.5mVpp
2.3 Output voltage resolution (DAC resolution): 2.5 μ V
3.4 Frequency/pulse repetition rate accuracy: ± 1%
2.5 Pacing pulse width accuracy: ± 5 μ S
2.6 DC offset: 300mV ± 1%
2.7 Sampling rate: Normal mode 1K, Raw Data mode 10K, accuracy: ± 5 μ S
2.8 Precision voltage divider 1000:1: ± 1%
3. Green light PPG module, model: 1R-525
3.1 Provide PPG heart rate simulation signal
3.2 Wavelength: 525nm, accuracy: ± 10nm
4. Red/infrared module, model: 2R-940
4.1 Provide SpO2 blood oxygen saturation simulation signal
4.2 Red light wavelength: 660nm, accuracy: ± 10nm
4.3 Infrared wavelength: 940nm, accuracy: ± 10nm
4.4 Blood oxygen saturation test range: 30%~100%
5 randomly equipped with testing software, built-in AECG standard auxiliary software, in compliance with regulations YY0885/IEC 60601-2-47
